What happened

The amplifier is a Романтика 15-120С. It sounds quiet nice but sometime the sound gets no so clear either on right or left speaker.
To fast improve sound quality, I unpluged and replugged AUX input 3.5 jack. Dumb but done. One day it resulted on no more sound at all.

I quickly found dead fuse F3. I took one of the fuse of the other channel and F3 died again. Dumb but done.

I put 2 working fuse on left channel, and 2 dead fuse on right channel. Switched on the amplifier. Left channel is working. Good.

After reading internet, I quickly suspected that power transistor of the right channel were shorted. It was the case.

Test a transistor

How to test a TRANSISTOR with a multimeter PNP or NPN
How to check fuses, diodes, transistors, voltage regulators
3 Ways to Check Capacitors in Circuit with Meters & Testers

Troubleshooting (eyes+multimeter)

Le fusible FU3 de l'alim +27V cramé.
Les deux transistors de puissance VT3 et VT4 en cours-circuit.
 => +27V s'est vidé en quasi direct dans le -27V (R23 et R24 de 0.22ohm sur le chemin)
R15 et R20 cramées sur la carte principale.
R17 et R23 cramées sur la carte module de la voie droite.

Power transistors that were in service before the problem

Left channel (working), original ones:

• PNP: KT818BM
• NPN: KT819BM

Right channel (not working), not original ones:

• PNP: Toshiba A1941 (second link)
• NPN: Toshiba C5198 (second link)

Intervention

Remplacement des transistors
PNP A1941 => A1943
NPN C5198 => C5200
Les nouveaux sont un peu plus gros. Il me reste à les coller sur le radiateur (je n'ai pas pu reprendre les anciens mica).

Remplacement des résistances sur la carte principale
R15 et R20. J'ai mis des 1/4W en comparant visuellement...
Ces résistances servent à prévenir l'utilisateur qu'un certain niveau de puissance a été atteint à travers l'alimentation d'une LED.

Remplacement des résistance sur la carte module
R17 100 ohm je voulais mettre 1/4W mais le vendeur n'avait plus que du 2W.

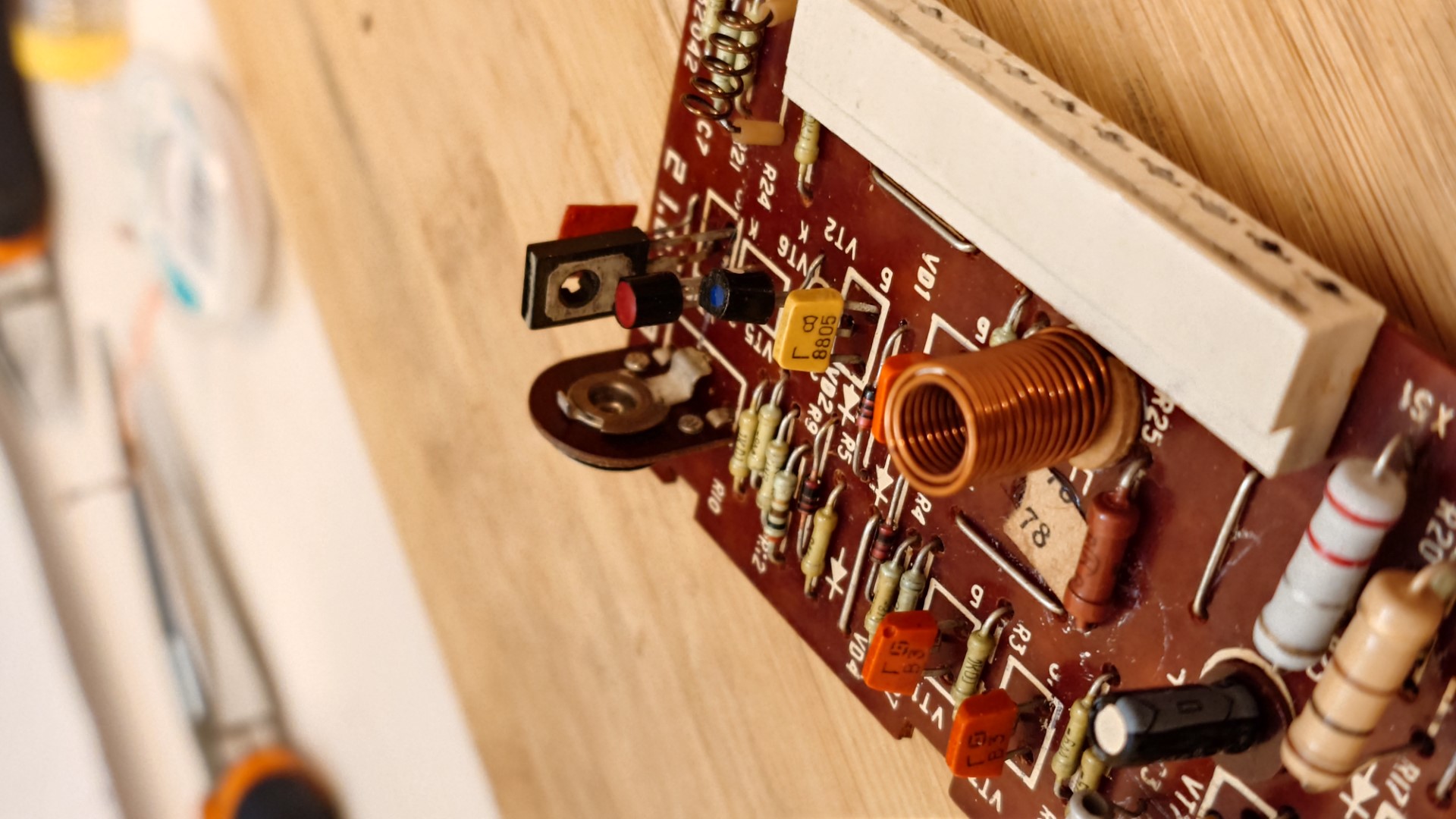

R23 0.22 ohm. A la base la résistance avait une forme de ressort (j'imagine que ces résistance doivent avoir une petit propriété inductive ?). Le vendeur n'en avait pas. J'ai hésité entre 2W et 5W. J'ai mis une 2W de forme classique.

Power transistor replacing broken ones

• PNP: Toshiba A1943
• NPN: Toshiba C5200

Fixed!

Intervention 2 - January 2024

After first intervention the amplifier worked well for a while and then start to be unstable, with too much cracks on the right channel
It was then replaced by a small chinese amplifier. Романтика 15-120С  remained unused for about 3 years.
Then troubleshooting occured again in December 2023:

1. By swapping the the amplifier module boards, it was identified that the defective(s) componant(s) where on the module board.
2. Using multi-meter, VD1 was found faulty and replaced (but installed in the wrong way!).

Amplifier worked well for a day then started again to crack and even relay protection was triggered every few seconds due to this same right canal.

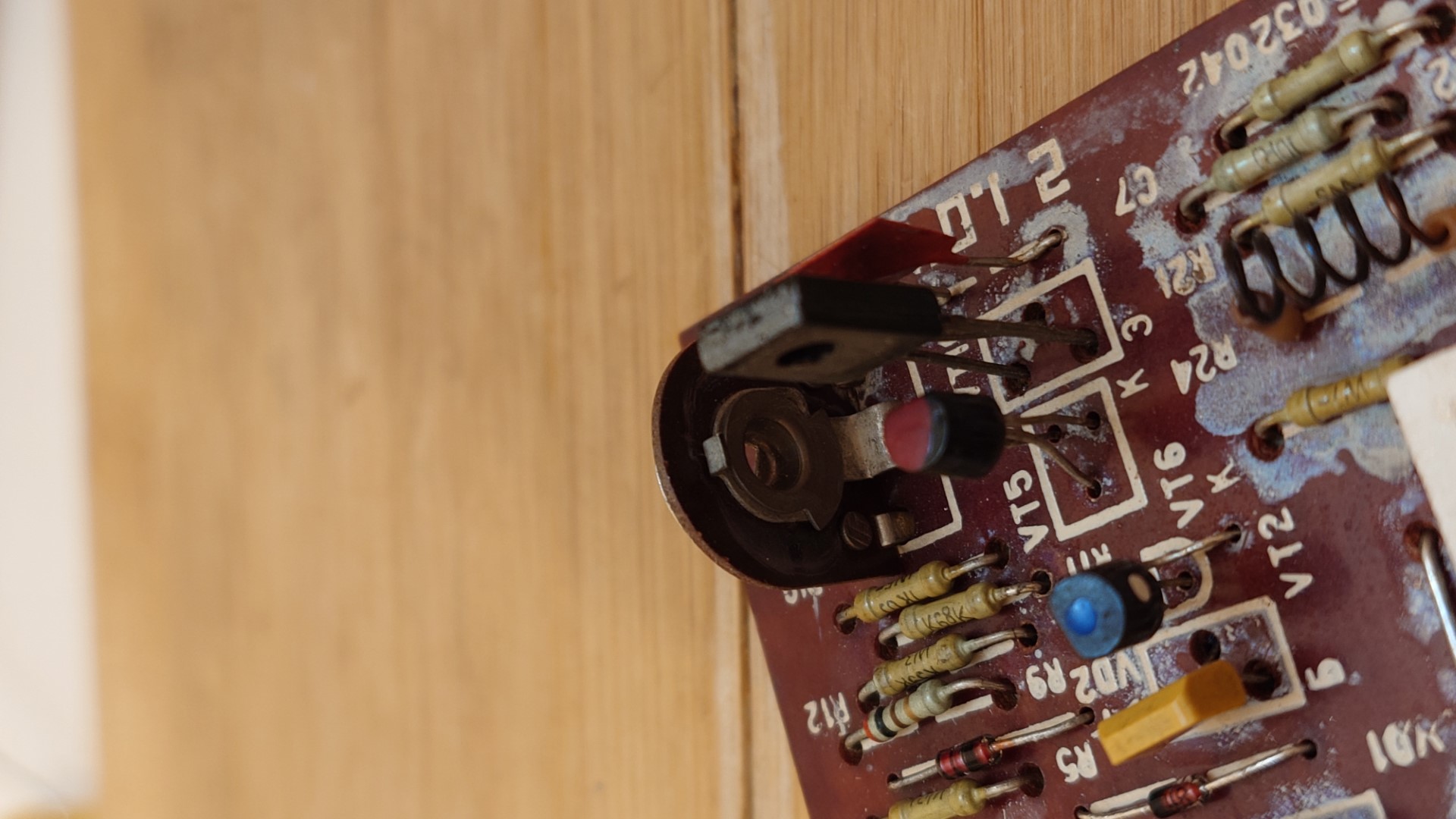

1. Comparing right and left modules using multimeter to measure each resistance and diode showed something different around VD1 VD2.
2. VD1 was put in the right way.

So far so good.

Intervention 3 - March 2024

Online Tone Generator - Free, Simple and Easy to Use.

The right speaker is working always good after intervention 2. But sometimes, the left channel is obvioulsy producing a lighter sound. I would say it is the case since I bought it.
By swapping the channels output from preamplifier, problem did not moved to the other side.

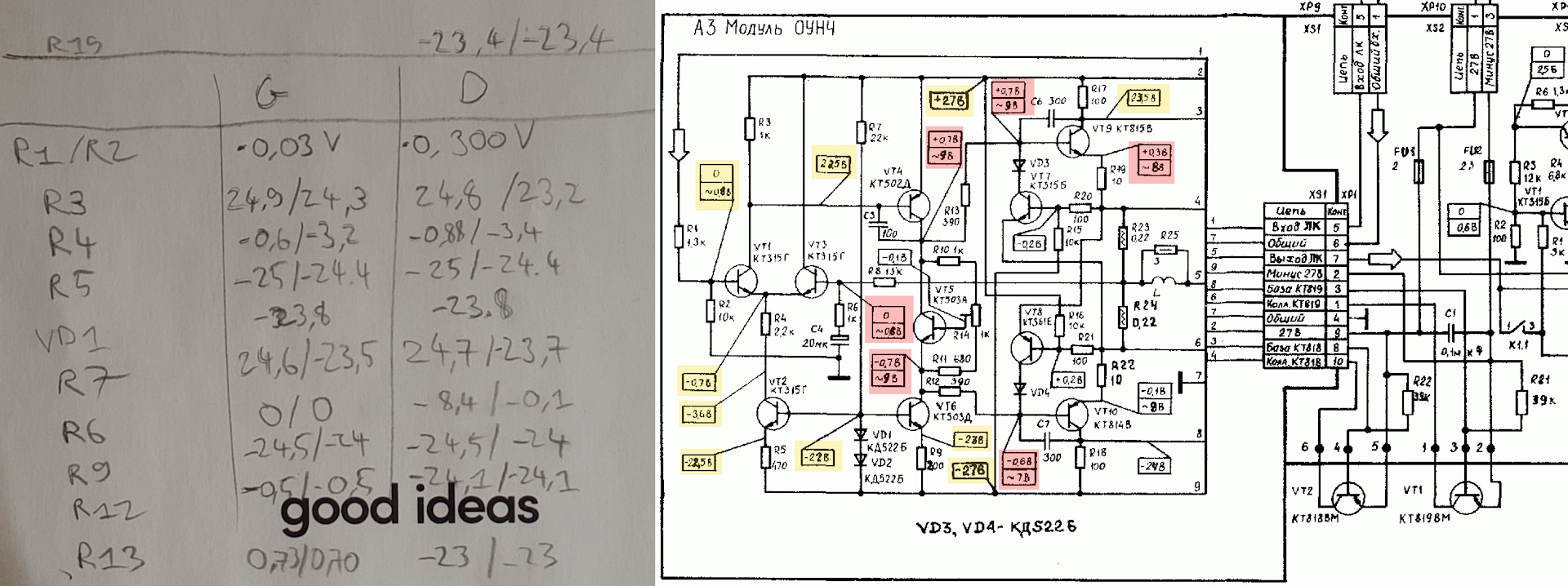

But for some reasons I checked preamplifier voltages vs. what is written on the schema:

I then swapped VT1 and VT2. The voltage values from left channel (top on the schema) exchanged with right chanel (bottom).
It didn't solve the problem but I will try to find a КП303Е transistor to get voltage in line with schematic (or not because sound is good anyway).

• КП303Е: аналог
  D - drain (сток)
  S - source (исток)
  G - gate (затвор)
• Транзистор полевой КП303 - DataSheet
• 2П303А, 2П303Б, 2П303В, 2П303Г, 2П303Д, 2П303Е, 2П303И, КП303А, КП303Б, КП303В, КП303Г, КП303Д, КП303Е, кКП303Ж, КП303И - Транзисторы кремниевые эпитаксиально-планарные полевые с затвором на основе p-n перехода и каналом n-тила - 2p303_kp303.pdf
• 2N5459R Datasheet Search

Sumup of operations:

• I swapped right and left chanel at several location:
  • Before the preamplifier
  • After the preamplifier / Before the amplifier
• I swapped КП303Е transistor (VT1 and VT2 on preamplifier board)
• I swapped right and left channel модуль ОУНЧ
• I swapped speakers

Problem always remained on the left channel.

Conclusion: it is due to some component on the last stage. Obvious old component : two power amplifier transistors and on old capacitor which is not on the way of the sound signals. Replaced.

Now need to listen music!

Intervention 4 - July 2024

So, intervention 3 didn't solve the issue with left channel to sometimes loosing sounds and strange noise when playing very low frequencies.
My conclusion above was : it is due to some component on the last stage.

So studying the schematics again I checked what it could be:

• Relay
• C1 capacitor
• Resistor R21 and R22

I changed the relay. Not better.
I swapped C1 with C4 of the right channel. Not better.

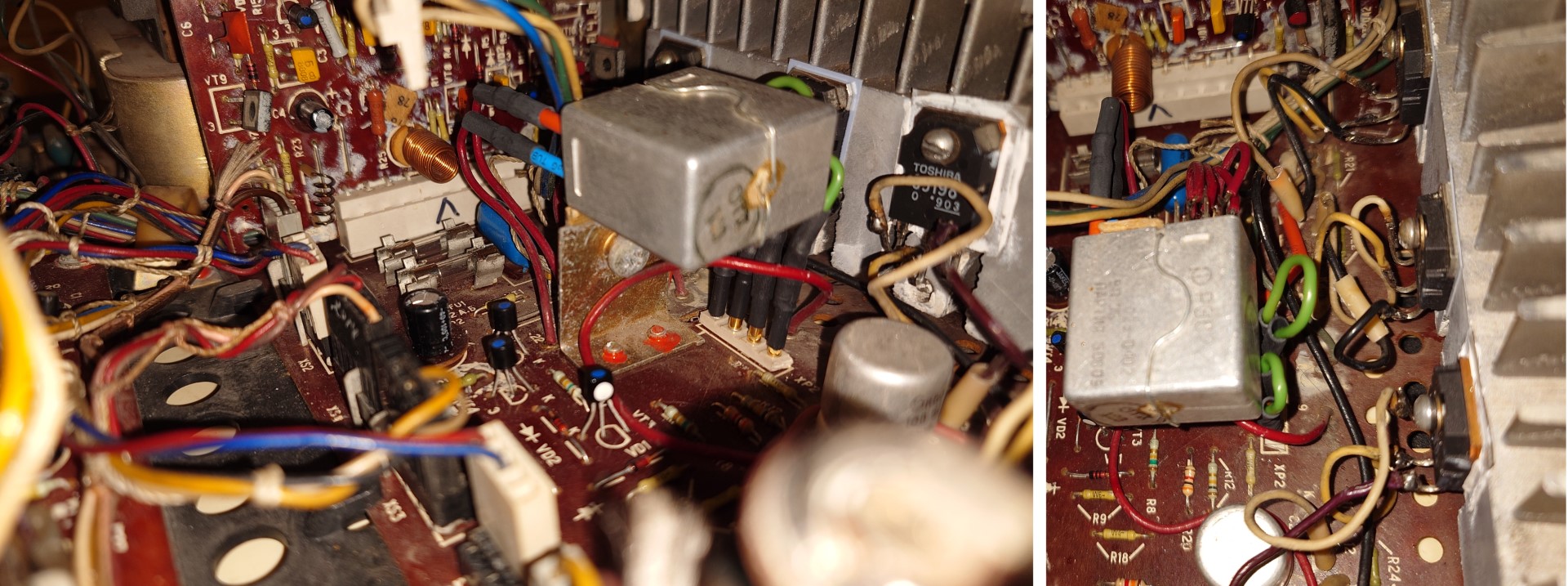

I was disapointed and checked again the schematic. Then I saw the signal was going to the headphones plug before going to speakers. I decided it won't go there anymore.

So far so good. One bonus difference I noticed, phones frequency are not audible anymore (before a call or when receiving a SMS). Now need to listen music!

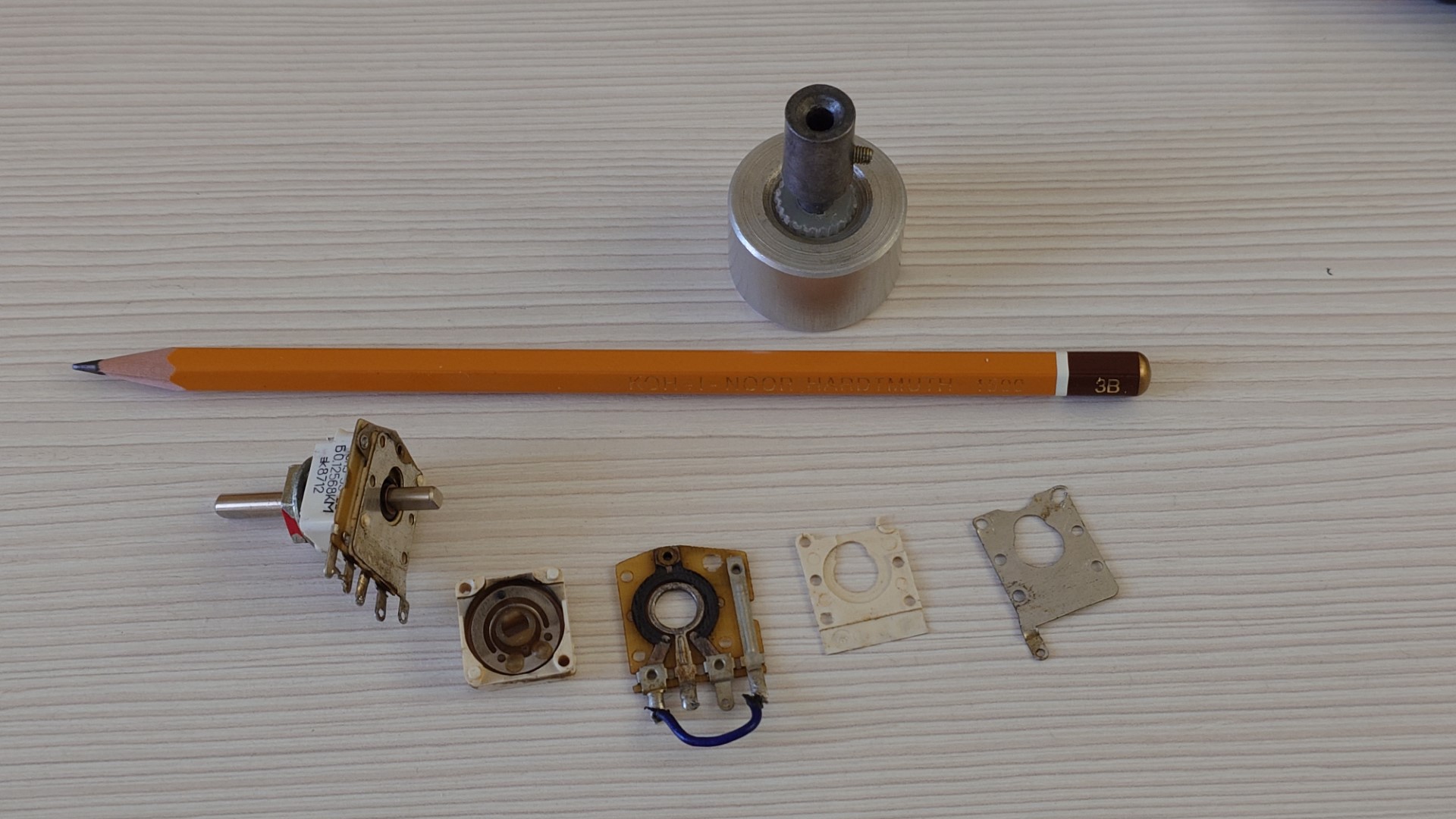

Futur intervention : fixing balance potentiometer СП3-33-22 68к

• СП3 33 конструкция ремонт восстановление
• СП3-33-22 М1ОМ Разбор Чистка Сбор
• Резисторы СП3-33-23 33кОм, 47кОм в Вега 10У120С и не только. И была ли смазка в резисторах на контактах изначально? — Сообщество «Клуб Почитателей Кассетных Магнитофонов» на DRIVE2

In the futur : to make new PCB or use chinese made amplifier boards

https://www.pcbway.com/
Maybe i could use stuff like this to repair last stage: Amplifier Board - AIYIMA A2D847

Install Munin

https://angristan.fr/monitorer-serveur-linux-munin/

Make a new pluggin

Then need to make it execuable :

Test it as munin user :

If you get that :

Somehow you will need to add munin user in the video group :

Or maybe that was that helped :

Then it will work :

Restart what is necessary :

Source : http://guide.munin-monitoring.org/en/latest/develop/plugins/howto-write-plugins.html

Préparer la pâte à crêpes : basé sur cette recette

Pour 15 crêpes :

• 300g de farine (=714mL mais j'ai mis seulement 600mL)
• 3 oeufs entiers
• 3 cuillères à soupe de sucre
• 2 cuillères à soupe d'huile
• 50g de beurre fondu
• 60cl de lait
• 5cl de rhum

Recettes :

1. Mettre la farine dans une terrine et former un puits.
2. Y déposer les oeufs entiers, le sucre, l'huile et le beurre.
3. Mélanger délicatement avec un fouet en ajoutant au fur et à mesure le lait. La pâte ainsi obtenue doit avoir une consistance d'un liquide légèrement épais.
4. Parfumer de rhum.
5. Faire chauffer une poêle antiadhésive et la huiler très légèrement. Y verser une louche de pâte, la répartir dans la poêle puis attendre qu'elle soit cuite d'un côté avant de la retourner. Cuire ainsi toutes les crêpes à feu doux.

Alternative :

• 250g de farine
• 500mL de lait
• 3 oeufs

1. Mélanger les oeufs
2. Rajouter la farine
3. Puis le lait  petit à petit
